Top Industrial Grade High-Efficacy LED Strips for Heavy-Duty Use

When it comes to industrial lighting solutions, high-efficacy LED strips have revolutionized the way we illuminate heavy-duty environments. These cutting-edge lighting systems offer unparalleled energy efficiency, durability, and versatility, making them ideal for a wide range of industrial applications. From manufacturing facilities to warehouses, and from outdoor installations to harsh environments, industrial-grade LED strips provide powerful illumination while withstanding extreme conditions. In this comprehensive guide, we'll explore the top high-efficacy LED strips designed for heavy-duty use, their key features, and the benefits they bring to industrial settings.

Understanding High-Efficacy LED Strips and Their Industrial Applications

What Makes LED Strips High-Efficacy?

High-efficacy LED strips are characterized by their superior light output relative to power consumption. This efficiency is measured in lumens per watt (lm/W), with higher values indicating greater efficacy. Industrial-grade LED strips typically boast efficacy ratings of 100 lm/W or more, significantly outperforming traditional lighting sources like fluorescent or incandescent bulbs.

The high efficacy of these LED strips is achieved through advanced semiconductor technology and optimized thermal management. By converting a larger proportion of electrical energy into visible light rather than heat, these strips minimize energy waste and maximize illumination. This efficiency translates to lower operating costs and reduced environmental impact, making high-efficacy LED strips an attractive option for industrial applications.

Key Industrial Applications of High-Efficacy LED Strips

Industrial-grade LED strips find applications across various sectors due to their robustness and versatility. Some common uses include:

- Manufacturing facilities: Providing uniform, high-quality lighting for production lines and workstations

- Warehouses: Illuminating large storage areas and enhancing visibility for inventory management

- Cold storage facilities: Offering reliable lighting in low-temperature environments

- Outdoor signage: Powering bright, weather-resistant displays

- Machine vision systems: Supplying consistent lighting for quality control and inspection processes

- Architectural lighting: Highlighting building features and enhancing safety in industrial complexes

The versatility of high-efficacy LED strips allows them to be integrated into various fixtures and installations, making them suitable for both new construction and retrofit projects in industrial settings.

Key Features to Look for in Industrial-Grade High-Efficacy LED Strips

Durability and Environmental Protection

Industrial environments often expose lighting systems to harsh conditions, including extreme temperatures, humidity, dust, and vibrations. High-quality industrial LED strips are designed to withstand these challenges through features such as:

- IP65 or IP67 ratings for dust and water resistance

- Robust silicone or polyurethane encapsulation

- Operating temperature ranges from -40°C to 85°C

- UV-resistant materials to prevent degradation in outdoor applications

- Shock and vibration resistance for use in moving machinery or high-traffic areas

These protective measures ensure that the LED strips maintain their performance and longevity even in challenging industrial environments.

Color Rendering and Consistency

Accurate color rendering is crucial in many industrial applications, particularly in quality control and inspection processes. Look for LED strips with high Color Rendering Index (CRI) values, ideally 80 or above, to ensure that colors are displayed accurately under the LED illumination.

Additionally, color consistency across the length of the strip and between different batches is important for maintaining a uniform appearance in large-scale installations. Many high-quality manufacturers employ binning techniques to ensure color consistency and offer options for color temperature selection to suit specific industrial needs.

Flexibility and Customization Options

Industrial applications often require lighting solutions that can adapt to complex layouts or unique installation requirements. High-efficacy LED strips designed for industrial use typically offer:

- Flexible PCB designs for curved or irregular surfaces

- Cuttable sections for precise length adjustments

- Multiple mounting options, including adhesive backing and mounting channels

- Customizable lengths and configurations to fit specific project needs

- Compatibility with various control systems for dimming and color-changing capabilities

These features allow for greater versatility in industrial lighting design, enabling seamless integration into diverse environments and applications.

Top Industrial-Grade High-Efficacy LED Strips on the Market

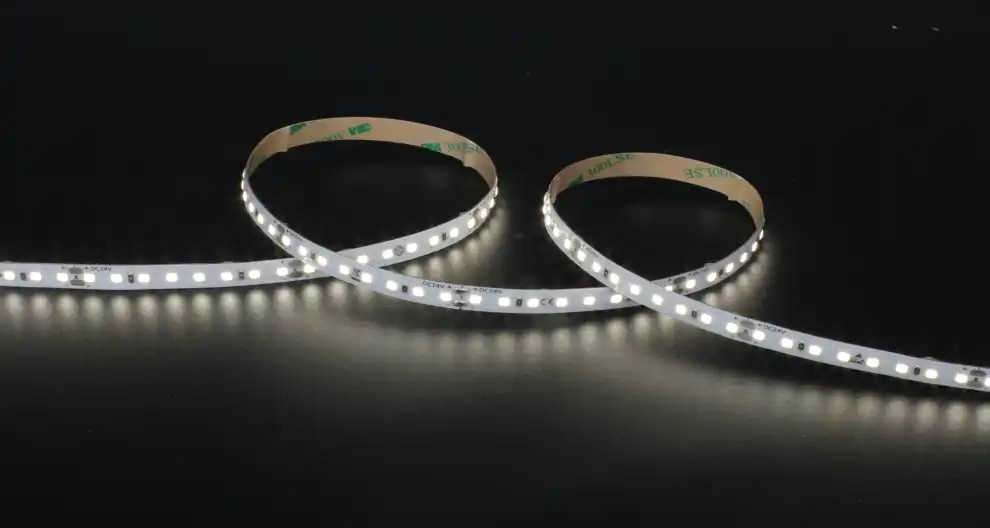

UC LED High-Output Industrial LED Strip

UC LED's high-output industrial LED strip stands out for its exceptional efficacy and durability. With a power consumption of 8W/M and an impressive 240 LEDs per meter, this strip delivers high brightness while maintaining energy efficiency. Key features include:

- IP65 or IP67 rating for excellent environmental protection

- Constant voltage (CV) control mode for stable performance

- Flexible side-bend design for versatile installation options

- Cuttable length of 25mm for precise customization

- 50,000-hour lifespan for long-term reliability

UC LED's commitment to quality is evident in their ISO 9001 and ISO 14001 certifications, as well as their UL, CE, and RoHS compliant products. The company's expertise in LED technology and custom lighting solutions makes this strip an excellent choice for demanding industrial applications.

Osram PrevaLED Linear High Efficacy Series

Osram's PrevaLED Linear High Efficacy series is designed for industrial and commercial applications requiring high light output and energy efficiency. These LED strips offer:

- Efficacy up to 200 lm/W for maximum energy savings

- Excellent color consistency with 3-step MacAdam ellipse binning

- High color rendering with CRI > 80

- Multiple color temperature options (3000K, 4000K, 5000K)

- Compatibility with various optics and reflectors for customized beam control

The PrevaLED series is particularly well-suited for high-bay lighting in warehouses and manufacturing facilities, where uniform, high-quality illumination is essential.

Lumileds LUXEON 2835 Color Line

Lumileds' LUXEON 2835 Color Line offers a range of high-efficacy LED options suitable for industrial applications requiring color versatility. Features include:

- Efficacy up to 175 lm/W for white LEDs

- Wide range of color options, including saturated colors and pastels

- Hot color targeting for consistent appearance at operating temperatures

- Sulfur-resistant package for use in harsh environments

- Compatibility with various secondary optics for beam shaping

These LEDs are ideal for creating custom industrial lighting solutions, particularly in applications where color plays a crucial role in operations or safety.

Cree XLamp XP-G3 LED

While not a strip itself, the Cree XLamp XP-G3 LED is often used in custom-built industrial LED strips due to its high performance and reliability. Key attributes include:

- Efficacy up to 190 lm/W at 85°C

- Excellent thermal resistance for high-temperature applications

- Available in a wide range of color temperatures (2700K to 6500K)

- Compact 3.45mm x 3.45mm footprint for dense packing in strips

- Reliable performance in extreme conditions

The XP-G3 is particularly well-suited for high-power industrial lighting applications where maximum light output and efficiency are required.

Samsung LM301B

Samsung's LM301B LEDs are known for their high efficacy and are frequently used in custom industrial LED strip designs. Notable features include:

- Efficacy up to 220 lm/W, one of the highest in the industry

- Excellent color consistency and uniformity

- Low thermal resistance for improved heat dissipation

- Available in various color temperatures and CRI options

- Compact size for flexible strip designs

These LEDs are ideal for creating high-efficacy industrial lighting solutions that prioritize energy efficiency without compromising on light quality.

Conclusion

In conclusion, the industrial lighting landscape has been transformed by high-efficacy LED strips, offering unprecedented energy efficiency, durability, and versatility for heavy-duty applications. When selecting LED strips for industrial use, it's crucial to consider factors such as environmental protection, color quality, and customization options to ensure the best fit for your specific needs.

By choosing high-quality, industrial-grade LED strips, businesses can significantly improve their lighting performance while reducing energy consumption and maintenance costs. For more information on custom industrial lighting solutions and high-efficacy LED strips, please contact Linda@uc-led.com. Our team of experts is ready to help you find the perfect lighting solution for your industrial application.

References

1. Khoo, Y. L., & Gan, C. K. (2019). An overview of LED lighting for industrial applications. Renewable and Sustainable Energy Reviews, 107, 473-488.

2. Tsao, J. Y., Crawford, M. H., Coltrin, M. E., Fischer, A. J., Koleske, D. D., Subramania, G. S., ... & Wierer Jr, J. J. (2018). Toward smart and ultra‐efficient solid‐state lighting. Advanced Optical Materials, 6(3), 1800024.

3. Durmus, D., & Davis, W. (2020). Optimising light source spectrum for long-term visual and non-visual responses to indoor lighting. Lighting Research & Technology, 52(4), 449-460.

4. Bian, Y., Liu, L., & Xu, Y. (2018). Reliability and failure analysis of high-power LED packages subjected to thermal shock. Microelectronics Reliability, 85, 139-144.

5. Zissis, G., & Bertoldi, P. (2018). Status of LED-lighting world market in 2017. In 2018 IEEE Industry Applications Society Annual Meeting (IAS) (pp. 1-7). IEEE.​​​​​​​
