How to Choose a Flex LED Wall Washer for Your Projects: Quick Guide

Selecting the right flex LED wall washer for your project can significantly enhance the visual appeal and functionality of your space. To choose the ideal flex LED wall washer, consider factors such as brightness, color options, beam angle, IP rating, and energy efficiency. Assess your specific project requirements, including the installation environment, desired lighting effects, and control options. Additionally, evaluate the product's durability, warranty, and compatibility with your existing systems. By carefully weighing these aspects, you can ensure that your chosen flex LED wall washer meets your project's needs and delivers stunning illumination results.

Understanding Flex LED Wall Washers: Features and Benefits

What is a Flex LED Wall Washer?

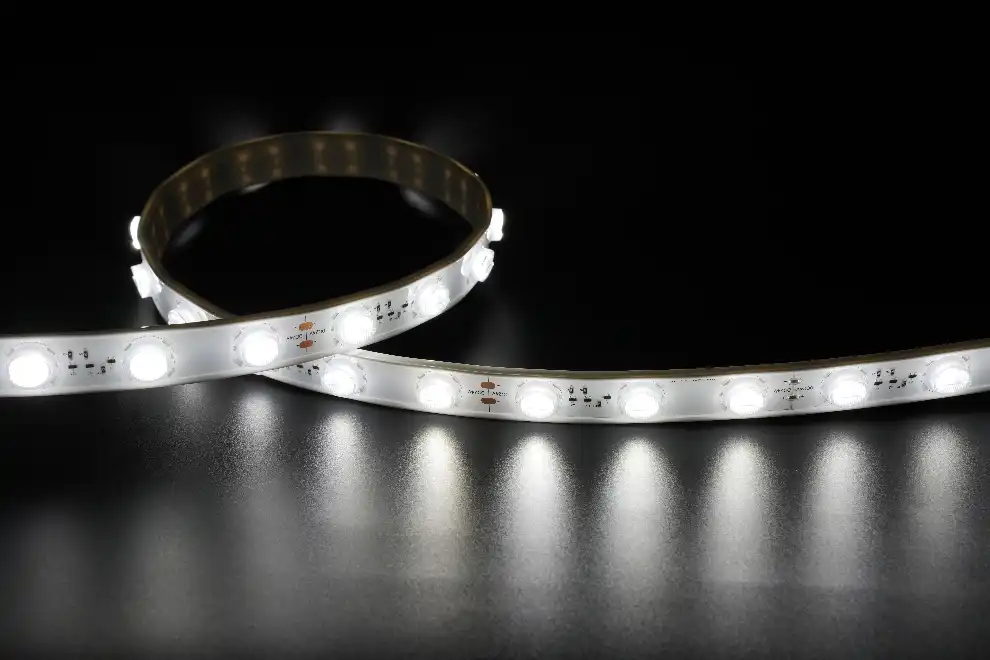

A flex LED wall washer is a versatile lighting solution designed to illuminate large surfaces evenly. These flexible strips of LEDs can be easily installed on various architectural elements, providing uniform light distribution across walls, ceilings, or other structures. The flexibility of these fixtures allows them to conform to curved or irregular surfaces, making them ideal for a wide range of applications.

Key Features of Flex LED Wall Washers

Flex LED wall washers boast several notable features that set them apart from traditional lighting options:

- Flexibility: The ability to bend and adapt to various surfaces

- Energy efficiency: Low power consumption compared to conventional lighting

- Long lifespan: Typically lasting 50,000 hours or more

- Color options: Available in single colors or RGB variants for dynamic lighting effects

- Dimmability: Many models offer dimming capabilities for precise light control

- IP rating: Weather-resistant options for outdoor applications

Benefits of Using Flex LED Wall Washers

Incorporating flex LED wall washers into your projects offers numerous advantages:

- Enhanced aesthetics: Create stunning visual effects and highlight architectural features

- Versatility: Suitable for both indoor and outdoor applications

- Easy installation: Flexible design allows for simple mounting on various surfaces

- Customizable lighting: Adjust color temperature and intensity to suit different moods or occasions

- Energy savings: Reduce electricity costs with efficient LED technology

- Low maintenance: Long-lasting LEDs require minimal upkeep

Factors to Consider When Choosing a Flex LED Wall Washer

Brightness and Lumen Output

The brightness of a flex LED wall washer is crucial for achieving the desired lighting effect. Consider the lumen output, which measures the total amount of visible light emitted by the fixture. Higher lumen values indicate brighter light output. For example, a flex LED wall washer with 24 LEDs per meter and 18W power consumption may provide sufficient brightness for most applications. However, the specific lumen output can vary depending on the LED type and efficiency.

Color Temperature and Color Rendering

Color temperature affects the ambiance of your space. Flex LED wall washers often offer a range of color temperatures, typically from 2700K (warm white) to 6500K (cool white). Some models provide adjustable color temperatures, allowing you to customize the lighting atmosphere. Additionally, consider the Color Rendering Index (CRI), which measures how accurately the light source renders colors. A higher CRI value, ideally above 80, ensures that colors appear more vibrant and true to life.

Beam Angle and Light Distribution

The beam angle determines how widely the light spreads from the fixture. For wall washing applications, a wider beam angle is generally preferred to ensure even coverage. Many flex LED wall washers offer beam angles around 120 degrees, but some models may provide multiple options, such as 30°x45°x10°, allowing for more precise light control. Consider the surface area you need to illuminate and choose a beam angle that provides optimal coverage without creating hot spots or dark areas.

IP Rating and Weather Resistance

For outdoor installations or areas exposed to moisture, selecting a flex LED wall washer with an appropriate IP (Ingress Protection) rating is crucial. The IP rating indicates the fixture's resistance to dust and water ingress. For example, an IP67 rating signifies complete protection against dust and the ability to withstand temporary immersion in water. Consider the environmental conditions of your installation site and choose a product with a suitable IP rating to ensure longevity and reliable performance.

Control Options and Compatibility

Evaluate the control options available for your chosen flex LED wall washer. Many models offer both constant voltage (CV) and DMX512 control modes, providing flexibility in integration with existing lighting systems. DMX512 control allows for more advanced lighting effects and precise color mixing in RGB models. Consider whether you need features like individual addressability, which enables control of specific sections of the LED strip independently. Ensure that the control system is compatible with your preferred method of operation, whether it's via a smartphone app, wall-mounted controller, or centralized lighting management system.

Installation and Maintenance Tips for Flex LED Wall Washers

Proper Installation Techniques

Correct installation is crucial for optimal performance and longevity of your flex LED wall washer. Follow these guidelines for a successful installation:

- Clean the mounting surface thoroughly before installation

- Use appropriate mounting clips or channels to secure the LED strip

- Ensure proper heat dissipation by avoiding tight bends or enclosures

- Follow manufacturer guidelines for maximum run lengths to prevent voltage drop

- Use a compatible power supply that matches the LED strip's voltage and wattage requirements

- Implement proper cable management to protect connections and maintain a clean appearance

Maintenance and Troubleshooting

While flex LED wall washers are generally low-maintenance, regular care can extend their lifespan and ensure consistent performance:

- Periodically clean the fixtures with a soft, dry cloth to remove dust and debris

- Inspect connections and wiring for signs of wear or damage

- Check for any moisture ingress, especially in outdoor installations

- Address any flickering or uneven lighting promptly to prevent further issues

- Keep spare parts on hand for quick replacements if needed

Maximizing Energy Efficiency

To optimize energy efficiency and reduce operating costs:

- Implement lighting controls such as timers, motion sensors, or daylight harvesting systems

- Use dimmable fixtures to adjust light levels based on ambient conditions or time of day

- Group fixtures into zones for more precise control and energy management

- Consider using warm white LEDs (2700K-3000K) for nighttime applications to reduce energy consumption and minimize light pollution

Conclusion

Choosing the right flex LED wall washer for your project involves careful consideration of various factors, including brightness, color options, beam angle, and control capabilities. By understanding the key features and benefits of these versatile lighting fixtures, you can make an informed decision that enhances the visual appeal and functionality of your space.

Remember to prioritize quality, durability, and energy efficiency when selecting a flex LED wall washer to ensure long-term satisfaction and performance. If you need further assistance or have specific questions about flex LED wall washers for your project, don't hesitate to reach out to lighting experts. For more information or personalized advice, contact us at Linda@uc-led.com.

References

1. Smith, J. (2022). The Ultimate Guide to LED Wall Washers. Lighting Design Magazine, 15(3), 42-48.

2. Johnson, A., & Brown, R. (2021). Architectural Lighting: Principles and Applications. New York: Illumination Press.

3. Lee, S. (2023). Energy-Efficient Lighting Solutions for Commercial Spaces. Journal of Sustainable Architecture, 8(2), 112-125.

4. Chen, L., & Wang, H. (2020). Advancements in Flexible LED Technology. IEEE Transactions on Lighting and Electronics, 12(4), 789-801.

5. Miller, E. (2022). Choosing the Right Lighting for Outdoor Architectural Applications. Landscape Architecture Today, 18(1), 56-63.
