The Evolution of Architectural Lighting: Introducing 3D LED Wall Washers
The lighting industry has witnessed a remarkable transformation over the past decade, with LED technology at the forefront of this revolution. Among the most exciting developments in this field is the emergence of 3D LED wall washers. These innovative lighting solutions represent a significant leap forward from traditional wall washing techniques, offering a level of flexibility and creativity previously unattainable.

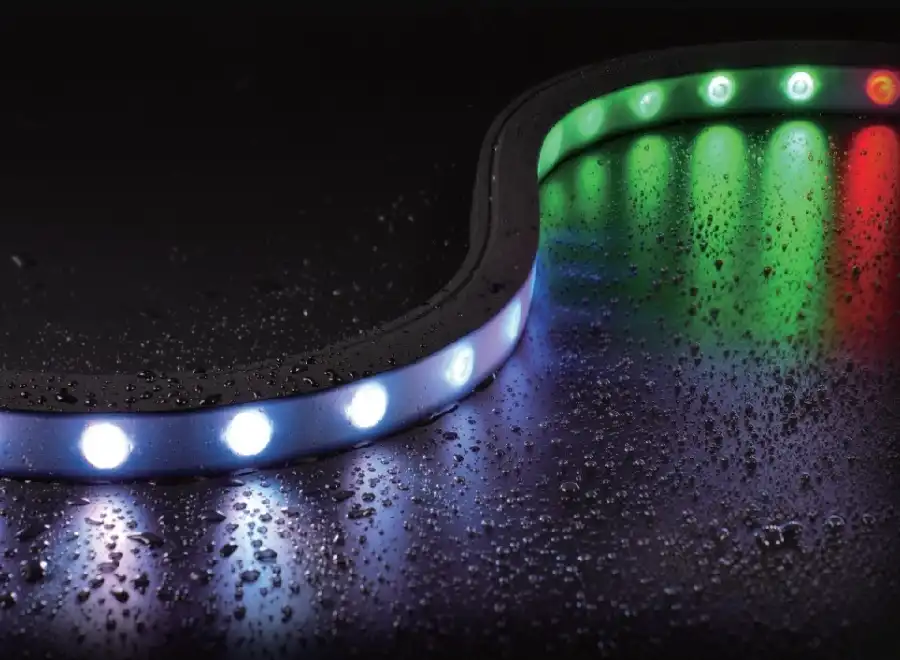

3D LED wall washers are designed to provide uniform illumination across architectural surfaces, much like their conventional counterparts. However, what sets them apart is their ability to conform to three-dimensional shapes and curves. This unique feature allows for seamless integration with various architectural elements, from undulating facades to intricate interior designs.
The technology behind 3D LED wall washers combines high-performance LEDs with flexible circuit boards and durable, transparent housing materials. This construction allows the fixtures to bend and flex without compromising light output or durability. As a result, designers can now illuminate complex geometries and create lighting effects that were once impossible to achieve with traditional rigid fixtures.
Key Features of 3D LED Wall Washers
3D LED wall washers boast several key features that make them stand out in the world of architectural lighting:
- Flexibility: The ability to bend and conform to various shapes and surfaces.
- Uniform Illumination: Even light distribution across curved and irregular surfaces.
- Energy Efficiency: LED technology ensures low power consumption and long lifespan.
- Color Options: Available in a wide range of colors, including RGB and RGBW configurations for dynamic color-changing effects.
- Durability: Weather-resistant construction for both indoor and outdoor applications.
- Customization: Can be cut to specific lengths and shapes to fit unique architectural requirements.
These features combine to create a versatile lighting solution that empowers designers to push the boundaries of architectural illumination, resulting in truly captivating and immersive environments.
Unleashing Creativity: Applications of 3D Flexible LED Wall Washers
The versatility of 3D LED wall washers opens up a world of possibilities for creative lighting design. These flexible fixtures can be applied in various settings, both indoors and outdoors, to achieve stunning visual effects and enhance architectural features. Let's explore some of the most innovative applications of 3D LED wall washers in modern lighting design.
Illuminating Curved Facades

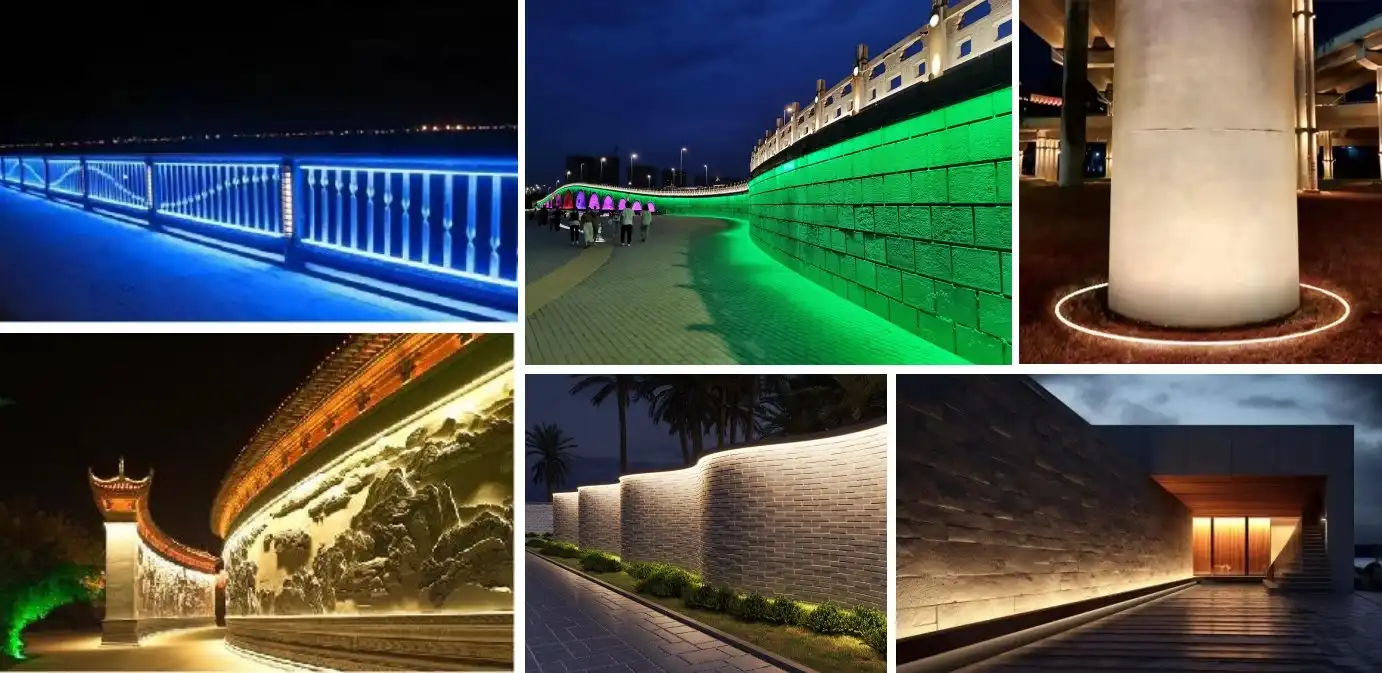

One of the most striking applications of 3D LED wall washers is in the illumination of curved building facades. Traditional rigid lighting fixtures often struggle to provide even illumination on curved surfaces, resulting in hotspots or dark areas. 3D flexible LED wall washers, however, can conform perfectly to the contours of curved facades, ensuring uniform light distribution and highlighting the building's unique architectural features.
This application is particularly effective in modern architecture, where organic shapes and flowing lines are becoming increasingly common. By using 3D LED wall washers, designers can accentuate these curves and create a mesmerizing interplay of light and shadow that brings the building to life after dark.
Creating Dynamic Interior Spaces
In interior design, 3D LED wall washers offer unprecedented opportunities for creating immersive and dynamic environments. These flexible fixtures can be integrated into curved walls, ceilings, or even custom-designed architectural elements to produce unique lighting effects. For example:
- Curved ceilings in hotel lobbies or conference rooms can be transformed into captivating light sculptures.

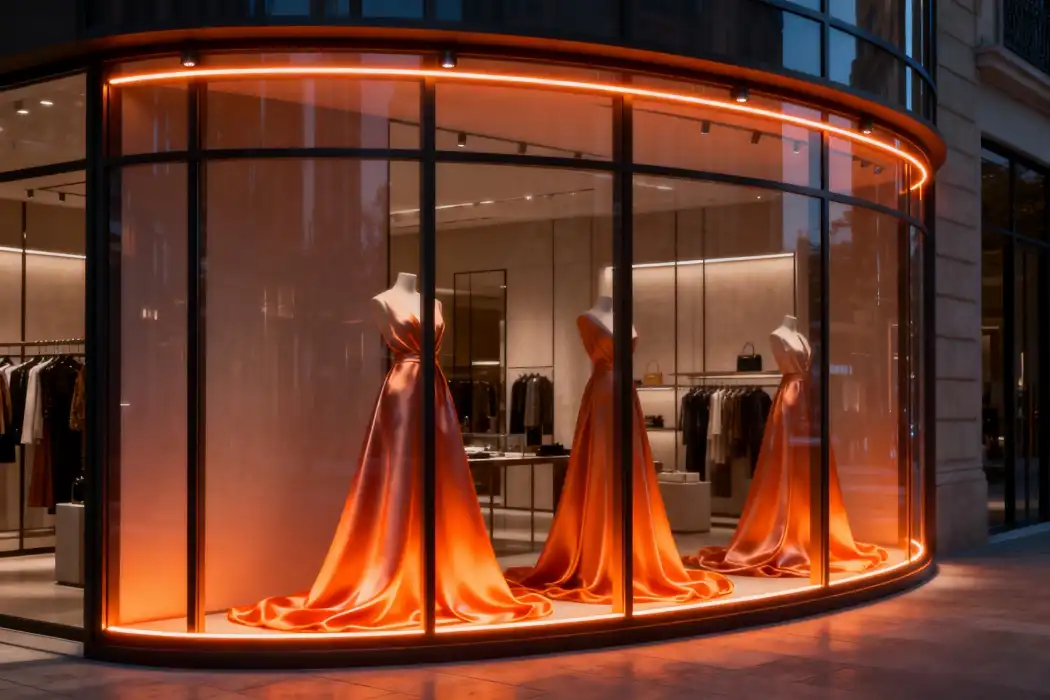

- Retail spaces can use 3D LED wall washers to create eye-catching displays that guide customers through the store.
- Restaurants and bars can employ these fixtures to craft ambient lighting that enhances the dining experience and creates a distinct atmosphere.
The ability to program color-changing effects adds another layer of dynamism to these installations, allowing spaces to transform throughout the day or in response to specific events or moods.
Enhancing Public Art Installations
Artists and designers are increasingly incorporating lighting into public art installations, and 3D LED wall washers have become a valuable tool in this realm. These flexible fixtures can be integrated into sculptures, interactive displays, or large-scale art pieces to create stunning visual effects.
For instance, a sculpture with complex curves and angles can be brought to life with carefully placed 3D LED wall washers, highlighting its form and creating an ever-changing play of light and shadow. In interactive installations, these fixtures can be programmed to respond to viewer movements or environmental factors, creating a truly immersive experience.
Technical Considerations and Installation Tips
While 3D LED wall washers offer exciting possibilities for lighting design, their successful implementation requires careful planning and consideration of several technical factors. Understanding these aspects is crucial for achieving optimal results and ensuring the longevity of the installation.
Power and Control Systems
One of the primary considerations when working with 3D LED wall washers is the power and control system. These fixtures typically require low-voltage DC power, which necessitates the use of appropriate power supplies and drivers. The power system must be carefully designed to ensure consistent performance across the entire installation, especially for large-scale projects.
Additionally, the control system plays a crucial role in realizing the full potential of 3D LED wall washers. Advanced control protocols such as DMX or Art-Net allow for precise manipulation of color, intensity, and dynamic effects. When planning an installation, consider the following:
- Calculate the total power requirements based on the length and type of LED strips used.
- Ensure proper voltage drop compensation for long runs of LED strips.
- Select a control system that offers the desired level of functionality and ease of use.
- Consider integrating the lighting control with building management systems for enhanced efficiency.
Mounting and Installation Techniques
The flexible nature of 3D LED wall washers requires special attention to mounting and installation techniques. Unlike rigid fixtures, these flexible strips need continuous support to maintain their shape and ensure even illumination. Some key considerations include:

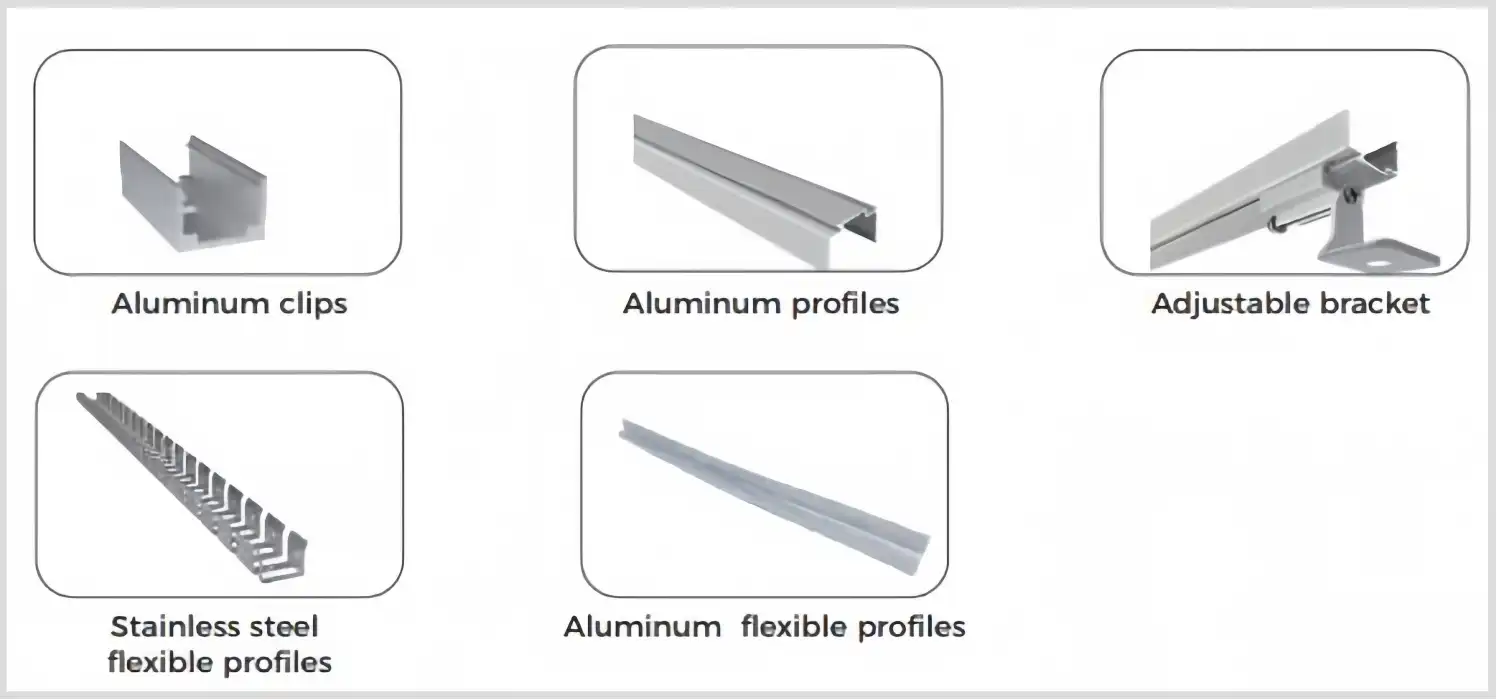

- Use appropriate mounting channels or profiles that can accommodate the curvature of the installation surface.
- Ensure that the mounting surface is clean, dry, and free of irregularities that could affect the adhesion of the LED strips.
- For outdoor installations, use weatherproof mounting solutions and ensure proper sealing to protect against moisture ingress.
- Consider thermal management, especially for high-power installations, to maintain optimal LED performance and longevity.
Maintenance and Longevity
While LED technology is known for its long lifespan, proper maintenance is essential to ensure the longevity of 3D LED wall washer installations. Regular inspections should be conducted to check for any signs of wear, damage, or moisture ingress. In outdoor installations, particular attention should be paid to seals and connections that may degrade over time due to environmental factors.
Additionally, consider the following maintenance aspects:
- Implement a regular cleaning schedule to prevent dust and debris accumulation, which can affect light output and heat dissipation.
- Monitor power supplies and control equipment for signs of wear or malfunction.
- Keep detailed documentation of the installation, including wiring diagrams and component specifications, to facilitate future maintenance or upgrades.
Conclusion
3D flexible LED wall washers represent a quantum leap in architectural lighting, offering unprecedented possibilities for creating dynamic and immersive visual experiences. Their ability to conform to curved surfaces and irregular shapes allows designers to illuminate spaces in ways that were previously unimaginable. From enhancing building facades to transforming interior spaces and bringing public art installations to life, these versatile fixtures are revolutionizing the field of lighting design.
As technology continues to advance, we can expect to see even more innovative applications of 3D LED wall washers in the future. The integration of smart control systems, improved energy efficiency, and enhanced customization options will further expand the creative possibilities for architects, designers, and artists alike.
For those looking to incorporate these cutting-edge lighting solutions into their projects, it's crucial to partner with a reputable 3D LED wall washer supplier or manufacturer. Look for providers who offer not only high-quality products but also comprehensive support, from design consultation to installation guidance and after-sales service. With the right partner and a creative vision, the possibilities for transforming spaces with 3D LED wall washers are truly limitless.
FAQ
What makes 3D LED wall washers different from traditional wall washers?
3D LED wall washers are flexible and can conform to curved surfaces, offering uniform illumination on complex architectural shapes. Traditional wall washers are typically rigid and best suited for flat surfaces.
Are 3D LED wall washers suitable for outdoor use?
Yes, many 3D LED wall washers are designed for both indoor and outdoor applications, with weather-resistant construction to withstand various environmental conditions.
Can 3D LED wall washers be customized for specific project requirements?
Absolutely. These fixtures can often be cut to specific lengths and shapes, and many manufacturers offer customization services to meet unique project needs.
Transform Your Space with Innovative 3D LED Wall Washers | QUAN HE
QUAN HE Lighting Co., Ltd., established in 2015, is a leading manufacturer specializing in premium linear lighting products, including cutting-edge 3D LED wall washers. Our state-of-the-art 5,000m² factory is equipped with advanced SMT assembly lines and a top-notch research lab, ensuring the highest quality products. We offer expert OEM and ODM customization services, allowing clients to bring their unique visions to life. Trust QUAN HE for innovative, reliable LED solutions that will elevate your lighting projects. Contact us at Linda@uc-led.com to explore how our 3D LED wall washer factory can meet your specific needs.
source: LED Light
References
1. Johnson, A. (2022). "Advancements in Architectural Lighting: The Rise of 3D LED Wall Washers." Architectural Lighting Review, 45(3), 78-85.
2. Smith, B. & Lee, C. (2021). "Flexible LED Technologies in Modern Building Design." Journal of Architectural Illumination, 18(2), 112-126.
3. Zhang, Y. et al. (2023). "Energy Efficiency and Visual Impact of 3D Flexible LED Lighting Systems." Sustainable Building Technologies, 7(4), 203-217.
4. Martinez, R. (2022). "Creative Applications of 3D LED Wall Washers in Public Art Installations." Public Art Today, 9(1), 34-49.
5. Brown, D. & Wilson, E. (2023). "Technical Considerations for Installing Flexible LED Lighting Systems." Lighting Design & Application, 55(6), 92-105.
