Comprehending DMX Control in Flexible LED Wall Washers
DMX control is a game-changer in the world of architectural and decorative lighting. For Flexible LED Wall Washers, this technology opens up a realm of possibilities, allowing for intricate color manipulation and seamless integration with larger lighting systems. Let's delve into the mechanics and benefits of DMX-controlled wall washers.
The Basics of DMX Protocol
DMX512, commonly referred to as DMX, is a digital communication standard used for controlling lighting and effects. It allows a single controller to manage multiple lighting fixtures, each with various parameters such as color, intensity, and effects. In the context of Flexible LED Wall Washers, DMX control commonly employs RGB (Red, Green, Blue) or RGBW (Red, Green, Blue, White) LEDs to produce an extensive and versatile spectrum of colors.
This capability allows lighting designers to mix colors precisely, create smooth transitions, and program dynamic effects such as fades, chases, or synchronized sequences. By using DMX-controlled RGB or RGBW LEDs, spaces can be transformed with customizable lighting moods, interactive installations, or accentuated architectural features, offering both aesthetic flexibility and enhanced visual impact for interior, exterior, or entertainment applications.
Advantages of DMX-Controlled Wall Washers
The integration of DMX control in Flexible LED Wall Washers brings numerous advantages:
1. Precise Color Control: DMX allows for highly accurate color mixing, giving users the ability to achieve exact shades and hues with Flexible LED Wall Washers. This precision enables designers to match branding colors, create thematic lighting, or produce subtle gradients, ensuring consistent and visually striking illumination across multiple fixtures.
2. Dynamic Lighting Effects: With DMX control, users can generate dynamic lighting effects such as moving color patterns, smooth fades, and gradual transitions. These effects add depth and visual interest to spaces, transforming static walls or facades into engaging, immersive environments that captivate viewers and enhance the overall ambiance.
3. Centralized Management: Multiple wall washers can be controlled simultaneously from a single DMX controller, streamlining complex lighting setups. This centralized approach reduces installation complexity, ensures synchronized operation, and allows operators to manage extensive lighting networks efficiently, saving time and improving overall system reliability.
4. Programmability: DMX-controlled wall washers can have pre-programmed lighting sequences that are easily recalled for different events, moods, or scheduled changes. This programmability allows for consistent, repeatable effects while giving designers the flexibility to create unique atmospheres for concerts, exhibitions, retail spaces, or architectural installations.
5. Integration with Other Systems: DMX-controlled wall washers can be synchronized with other lighting fixtures, audio systems, or building management systems, enabling comprehensive environmental control. This integration facilitates coordinated light shows, event-specific effects, or responsive lighting environments that enhance experiences while maintaining operational efficiency and creative flexibility.
Implementation in Various Settings

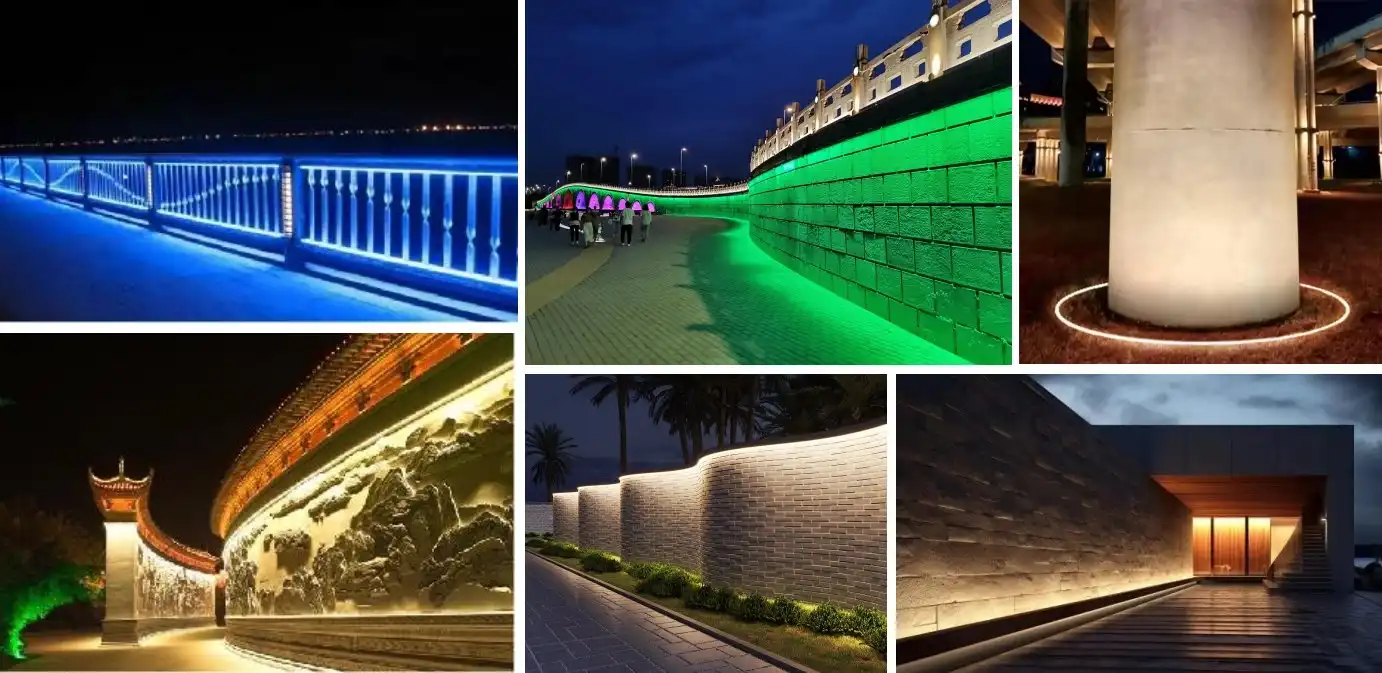

DMX-controlled Flexible LED Wall Washers find applications in diverse environments:

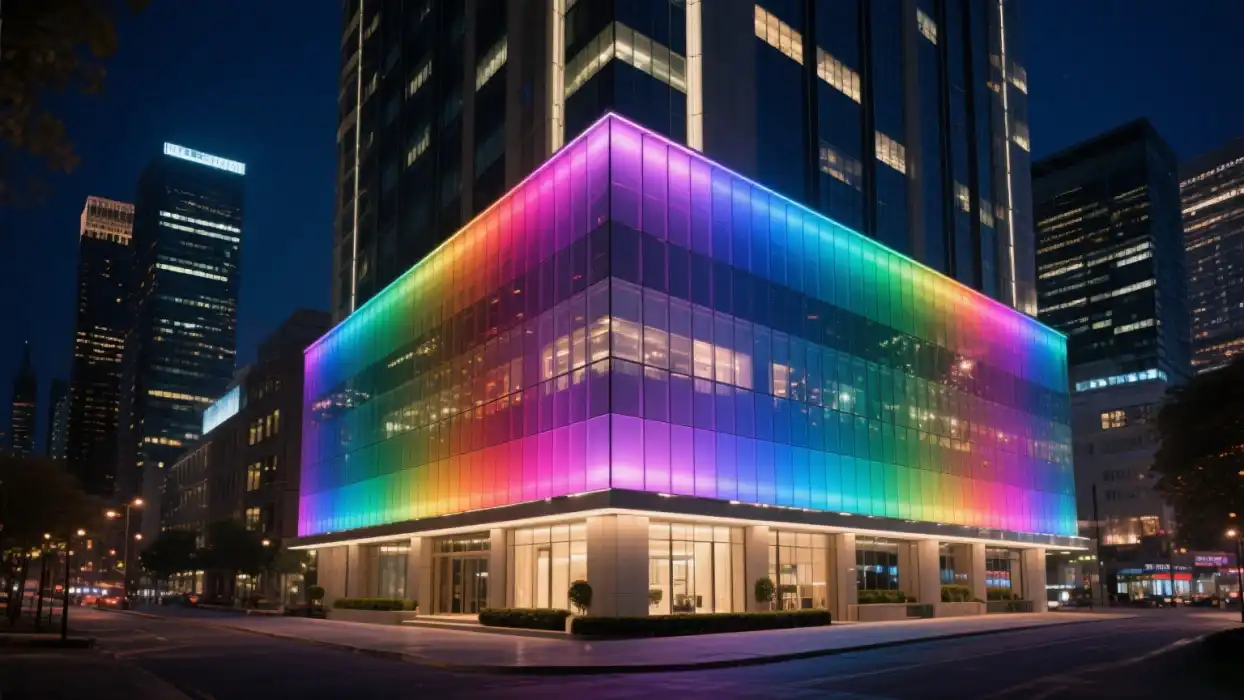

- Architectural Lighting: Illuminating building facades with changing colors to match seasons, events, or brand themes.
- Entertainment Venues: Creating immersive atmospheres in clubs, theaters, and concert halls.
- Retail Spaces: Enhancing product displays and influencing customer moods through dynamic lighting.
- Art Installations: Enabling interactive and evolving light-based artworks.
- Hospitality Industry: Setting the ambiance in hotels, restaurants, and event spaces with adjustable lighting schemes.
Technical Considerations for DMX-Controlled Flexible LED Wall Washers
While the creative possibilities of DMX-controlled wall washers are exciting, there are several technical aspects to consider for optimal implementation and performance.
DMX Addressing and Channel Configuration
Each Flexible LED Wall Washer in a DMX setup requires a unique address. This address determines which control channels the fixture responds to. For RGB wall washers, typically three channels are used (one each for red, green, and blue), while RGBW fixtures use four channels. More advanced models might use additional channels for features like master dimming or built-in effects.
Power and Data Distribution
Proper planning of power and data distribution is crucial for DMX-controlled wall washers. This involves:
- Calculating power requirements based on the number and length of wall washers.
- Ensuring adequate power supply and distribution to prevent voltage drop.
- Using appropriate DMX cables and splitters to maintain signal integrity over long distances.
- Implementing DMX terminators at the end of each DMX run to prevent signal reflection and interference.
Controller Selection and Programming
The choice of DMX controller is vital for realizing the full potential of your Flexible LED Wall Washers. Options range from simple handheld controllers to sophisticated lighting consoles and software-based solutions. Key factors to consider include:
- The number of DMX universes supported (each universe can control up to 512 channels).
- User interface and ease of programming.
- Integration capabilities with other systems.
- Support for advanced features like pixel mapping for creating intricate patterns across multiple wall washers.
Best Practices for Implementing DMX-Controlled Wall Washers
To ensure optimal performance and longevity of your DMX-controlled Flexible LED Wall Washer installation, consider the following best practices:
Planning and Design
1. Conduct a thorough site survey to determine optimal placement of wall washers.
2. Create a detailed lighting plan, including DMX addressing schemes and power requirements.
3. Consider ambient light conditions and surface materials when selecting wall washer intensity and color options.
4. Plan for future expansion by allocating extra DMX addresses and power capacity.
Installation and Setup
1. Use high-quality, weatherproof connectors for outdoor installations to ensure reliability.
2. Implement proper grounding and surge protection to safeguard the DMX system.
3. Label all cables and fixtures with their respective DMX addresses for easy maintenance.
4. Conduct thorough testing of DMX communication and color output before finalizing the installation.
Maintenance and Troubleshooting
1. Regularly inspect and clean wall washers, especially in outdoor or dusty environments.
2. Implement a preventative maintenance schedule to check for loose connections or degraded components.
3. Keep detailed documentation of the DMX setup, including addressing schemes and programming, for easy troubleshooting.
4. Train staff on basic DMX principles and troubleshooting techniques to handle common issues.
Creative Applications
1. Experiment with color theory to create visually appealing and psychologically effective lighting schemes.
2. Utilize DMX control to create dynamic lighting that responds to music, movement, or environmental factors.
3. Develop seasonal or event-specific lighting programs to keep the visual environment fresh and engaging.
4. Consider integrating sensors or interactive elements to allow user control or automated responses to external stimuli.
Conclusion
DMX-controlled Flexible LED Wall Washers represent a pinnacle in modern lighting technology, offering unparalleled flexibility and creative potential. From enhancing architectural beauty to creating immersive environments, these versatile fixtures have become indispensable tools in the lighting designer's arsenal. As you consider implementing DMX-controlled wall washers in your projects, partnering with a reputable manufacturer is crucial. Look for a Flexible LED Wall Washer supplier or manufacturer that not only provides high-quality products but also offers comprehensive support and customization options. With the right products and expertise, you can transform spaces and create unforgettable visual experiences through the power of DMX-controlled lighting.
FAQ
How many Flexible LED Wall Washers can be controlled by a single DMX system?
The number of wall washers that can be controlled depends on the DMX controller's capacity and the number of channels each fixture uses. A single DMX universe can control up to 512 channels, so the exact number will vary based on your specific setup.
Can DMX-controlled wall washers be integrated with building automation systems?
Yes, many DMX systems can be integrated with building automation systems through protocols like Art-Net or sACN, allowing for centralized control of lighting alongside other building systems.
What is the typical lifespan of a DMX-controlled Flexible LED Wall Washer?
The lifespan can vary depending on usage and environmental conditions, but high-quality LED wall washers often have a rated lifespan of 30,000 hours or more when properly maintained.
Illuminate Your Projects with QUAN HE's DMX-Controlled Flexible LED Wall Washers | QUAN HE
At QUAN HE Lighting Co., Ltd., we specialize in cutting-edge DMX-controlled Flexible LED Wall Washers. Our ISO-certified manufacturing facility and expert R&D team ensure top-quality, innovative lighting solutions. As a leading wall washer manufacturer and factory, we offer customized OEM and ODM services to meet your specific project needs. Experience the brilliance of our DMX-controlled wall washers and elevate your lighting designs. Contact us at Linda@uc-led.com for professional consultation and superior product solutions.
source: LED Light
References
1. Johnson, E. (2022). "Advanced DMX Control Systems for Architectural Lighting." Lighting Design Quarterly, 45(3), 78-92.
2. Smith, A. & Brown, R. (2021). "Flexible LED Wall Washers: Applications and Control Methods." Journal of Architectural Illumination, 18(2), 205-220.
3. Lee, S. (2023). "DMX Protocol in Modern Lighting: From Stage to Architecture." Lighting Technology Review, 30(1), 15-28.
4. Williams, T. (2022). "Color Theory and DMX-Controlled LED Lighting in Commercial Spaces." Retail Design International, 12(4), 132-145.
5. Chen, L. & Garcia, M. (2023). "Energy Efficiency and Performance of DMX-Controlled LED Wall Washing Systems." Sustainable Lighting Solutions, 7(2), 55-70.
