Comprehending Flexible LED Strip Technology
Flexible LED strip lights, LED tape lights, and LED ribbon lights are thin, bendable circuit boards that have surface-mounted light-emitting diodes (SMD LEDs). These new ways of lighting up areas are used more and more in homes, companies, and other places because they are better than older ways in many ways.

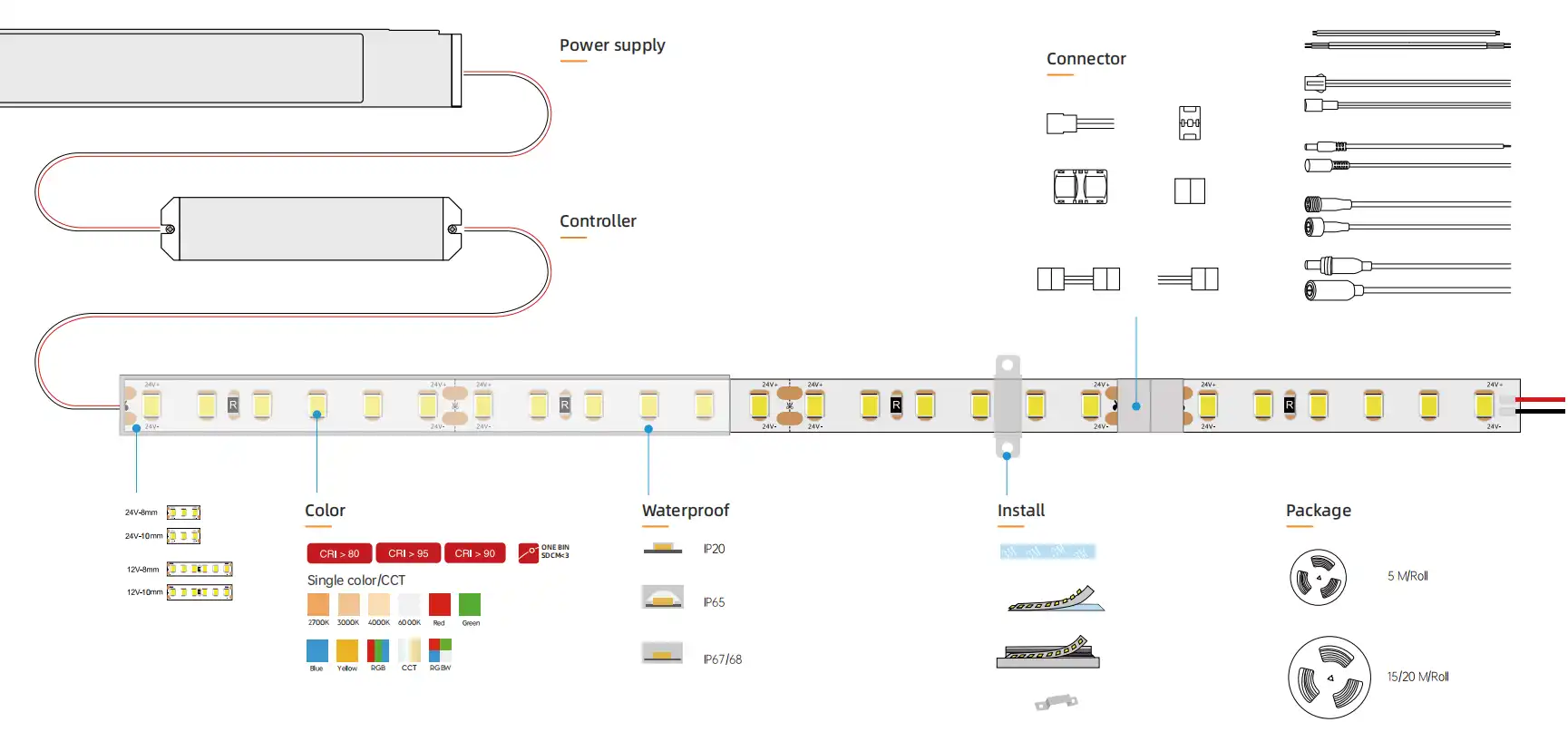

Components of Flexible LED Strips
These are the most important things about flexible LED strips:
- LEDs, which are mostly SMD LEDs, are the main parts that make light
- Printed Circuit Board (PCB): A bendable base that the LEDs and other electronics are connected to
- Resistors: To control the power and keep the LEDs safe
- Adhesive backing: This makes it easy to stick to different surfaces.
- Protective cover: usually glue or wax to keep the parts safe from dust and moisture
To ensure that they last a long time, stay bright, and show color correctly all the way down the strip, high-quality, flexible LED strips are made with the best parts. Because they directly affect the strip's overall effectiveness, energy efficiency, and life, LED selection is crucial.
The light output is kept steady with very little shifting by high-quality diodes. Phosphor finishes help make sure that the light is bright and the color temperatures are just right. Also, better technology and materials help the heat spread out. This keeps the LED strips from breaking down too soon and keeps them working well. Because of this, they are a dependable and permanent option for lights in the home, the office, and factories.
Advantages of Flexible LED Strip Lighting
Flexible LED strips are a great choice for many different lighting situations because they have a lot of benefits, such as
- Flexibility: It can be shortened to any length and bent around edges.
- Efficiency: It uses less electricity than normal lights.
- Longevity: LED strips of good quality can last over 50,000 hours.
- Emits little heat: safer to touch and less likely to start a fire—can be customized to fit your needs. Can be bought in a range of different colors and color temperatures
- Can be made darker: Many types have adjustable lighting settings, and they are simple to add. Self-adhesive backing that makes it easy to put in the right place

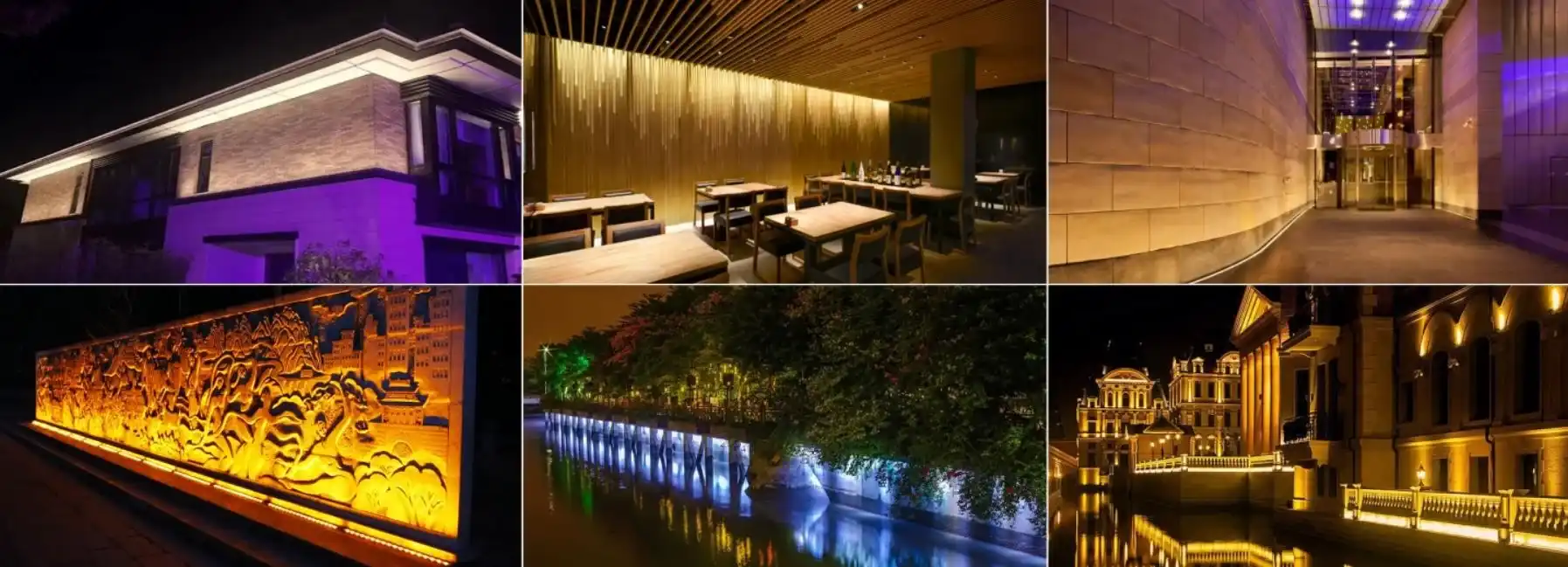

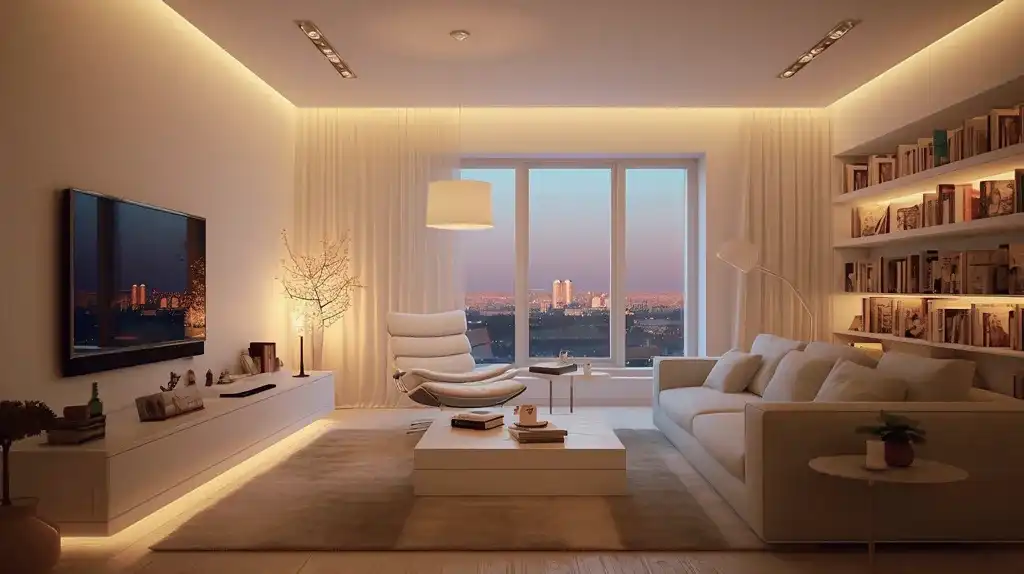

Because of these benefits, flexible LED strips are used in a lot of different places, both at home and at work. People commonly use these to light up closet spaces, areas under cabinets, or to make sure there is lighting in the home. They look good, save energy, and are adjustable. Flexible LED strips are used in businesses to create eye-catching lighting in offices, hotels, and stores, to highlight goods, and to draw attention to certain aspects of buildings.
LEDs are a great choice for people who want to make modern lighting projects that are both helpful and stylish because they are useful in many ways, last a long time, stay bright, and use very little electricity.
Selecting the Right Flexible LED Strip for Your Project
When choosing the best bendable LED strip for your needs, there are a lot of important things to consider. Knowing these things will be sure that your lighting choice fits your project's needs and wants.
Brightness and Lumen Output
The brightness of flexible LED strips is typically measured in lumens per meter (lm/m). Different levels of light are needed for different apps:
- Accent lighting: 200–500 lm/m
- Task lighting: 500–1,000 lm/m
- The main lighting is 1000+ lm/m.
When picking the right brightness level for flexible LED strips, consider the room's lighting and the goal. Under-cabinet or tabletop lighting needs brighter strips because useful spaces—like kitchens, workshops, or home offices—typically need more light so that people can do their job safely and quickly.
In contrast, areas that are artsy, like beds, living rooms, or lounges, look better with softer lighting at lower levels. This makes the space feel warm and relaxed. Optimizing comfort, energy efficiency, and visibility, as well as making the room look better overall, can all be done by matching light to the specific purpose.
Color Temperature and Rendering
Color temperature is recorded in Kelvin (K), and it affects the way your lights look and how they function.
- White warm (2700K–3000K): Makes things look cozy and inviting.
- Neutral white (3500K–4000K): Lighting that looks natural and even
- Cool white (5000K–6500K): Light that makes you feel better and helps you stay focused on what you need to do
The Color Rendering Index (CRI) compares how a light source and natural lighting show colors. This is an important way to measure how realistic a picture or movie is. In places like stores, art galleries, photography studios, or design workshops where the real colors of the items need to be seen, it is smart to use LED strips that have a high CRI (usually 90 or above).
LED strips with high CRI ensure that colors look bright, natural, and even. This changes how the user sees the lights, which makes the whole experience better. This means they're great for places where precise color measurement and a nice-looking display are needed.
Power Requirements and Consumption
Understanding your LED strip's power needs is important for its placement and operation.
- Voltage: Flexible LED strips usually operate with 12V or 24V of DC power.
- W/m: Choosing a power source: From 4.8W/m up to 20W/m or even higher
- Power supply selection: Check that your power source can handle all the energy your setup needs
Figure out how much power your LED strips use over their length. This will help you make sure you place them in a safe and proper way. In the product description, the power rate per meter can be found first. Then add the length of your work to that number. This total energy will help you pick a power source with the right amount of power. The best way to do this is to make sure there is a safety cushion of 20% to 30%. Also, you can accurately calculate the cost over time if you know how much energy you use in total. This will keep your tools in good shape and keep you from losing money.
Installation and Maintenance Tips for Flexible LED Strips
If you want your flexible LED strips to work well and last a long time, you need to make sure they are placed and cared for properly. If you use best practices, your lighting system will work well and safely.
Getting Ready and Mounting
Before installing flexible LED strips, prepare the mounting surface:
- Clean the surface thoroughly to remove dust, grease, and debris
- Ensure the surface is dry and smooth
- For uneven surfaces, consider using mounting channels or clips
When mounting the strips:
- Remove the adhesive backing carefully
- Apply pressure evenly along the strip to ensure proper adhesion
- Avoid bending the strip at sharp angles to prevent damage to the circuitry
Wiring and Power Connection
Proper wiring is essential for safe and efficient operation:
- Use appropriate gauge wires to minimize voltage drop over long runs
- Ensure all connections are secure and properly insulated
- Install a compatible dimmer if desired
- Consider using a constant voltage LED driver for optimal performance
If you do electrical work outside or somewhere that might get wet, you need to use good seals and plugs that are waterproof so that the connections don't get wet or dusty. If you close joints and links the right way, you can avoid short circuits, rust, and possible safety issues. This guarantees long-term performance. Also, using parts that are weatherproof makes the LED strips last longer and be more durable. This allows them to keep working well in places where it rains, snows, or gets very hot. This also means that they don't need to be fixed as often and that there will be fewer electricity problems in outdoor or wet settings.
Maintenance and Troubleshooting
Taking care of your LED strip fitting often can help it last longer:
- Every now and then, wipe the strips with a dry cloth that is soft.
- Check for links that aren't tight or signs of wear.
- Look for any flashing or lowering; these could be signs of power problems.
If things aren't working, check that the power source is working and the links are tight:
- Check the strip or wires for damage.
- Test different parts to find the issue.
- Look at the manufacturer's fix guide or get help from a pro.
Conclusion
Flexible LED strip lights can be used for a wide range of applications and are relatively inexpensive. You can pick out the best LED strip for your project if you think about things like how bright the strip is, the color temperature, and how much power it needs. It will work well for a long time and you'll be happy with it if you set it up and take care of it the right way. When you buy flexible LED strips, you should buy from a well-known seller or maker that can give you good products and expert help. To make sure your lighting project turns out well, look for companies that offer a lot of different options, have full rights, and a history of providing reliable LED lighting solutions.
FAQ
How long do flexible LED strips usually last?
If they are used in the right way and at the right time, high-quality flexible LED strips can last more than 50,000 hours.
Can I make flexible LED strips work for me by cutting them?
Yes, the majority of flexible LED strips have markings on them that indicate where they could break. Always cut along these lines to keep the wires safe.
Are flexible LED strips safe to use outdoors?

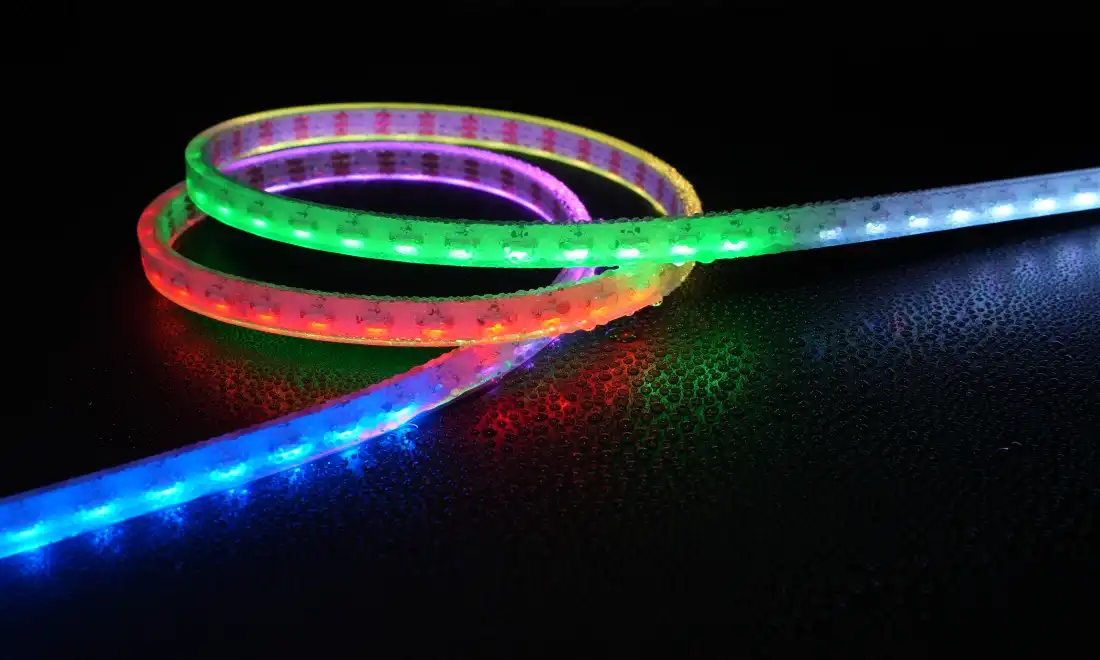

Some flexible LED strips are designed for outdoor use and can handle water and dust as long as they have the right IP ratings. Before using LED strips outside, you should always check the manufacturer's specs first.
Expert Flexible LED Strip Solutions | QUAN HE
QUAN HE Lighting Co., Ltd. makes some of the best high-quality, bendable LED strip lights for homes and businesses. In both kinds of projects, they find new ways to use their goods. In our new 5,000m² factory, we make high-quality, custom LED lights. Our factory has advanced production lines, and there is a team of experts whose job it is to do research and development. Our ISO-certified manufacturing methods and many other certifications make sure that our goods are stable and work well. You can always count on QUAN HE for high-quality, flexible LED strips and custom-made lights. For exact and high-quality lighting for your projects, send us an email at Linda@uc-led.com.
